Plate bevel milling PDF Print E-mail
This machine is a handy and flexible unit for the preparation of welds,bevelling of meaterials resp.,
the low weight(please compare with our competition) enables the use on almost every work place and a rattling-free,steady milling operation.The handing and operation is easy and safe.
The machineis suitable for milling steel,VA,cast iron and nonferrous heavy metal by one-hand operation.

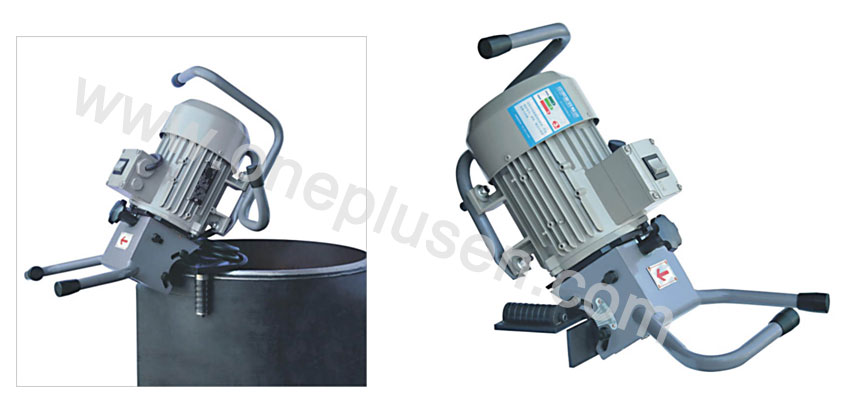

SKF-15 plate bevel milling machine

This machine is a handy and flexible unit for the preparation of welds,bevelling of meaterials resp.,the low weight(please compare with our competition) enables the use on almost every work place and a rattling-free,steady milling operation.The handing and operation is easy and safe.The machineis suitable for milling steel,VA,cast iron and nonferrous heavy metal by one-hand operation.

Technical parameter:

Motor/Voltage: 380V AC,50Hz-other voltages/frequencies on request
Capacity: 1.5KW
Rotation speed: 2870rpm
Land width: 15mm max.,progressively adjustable
Bevel angle: 30°-60°progressively adjustable
Weight: 18kg
