9" Metal Cutting Circular Saw CS230 PDF Print E-mail

METAL WORKING TOOLS

METAL CUTTING CIRCULAR SAWS CS200 / CS230

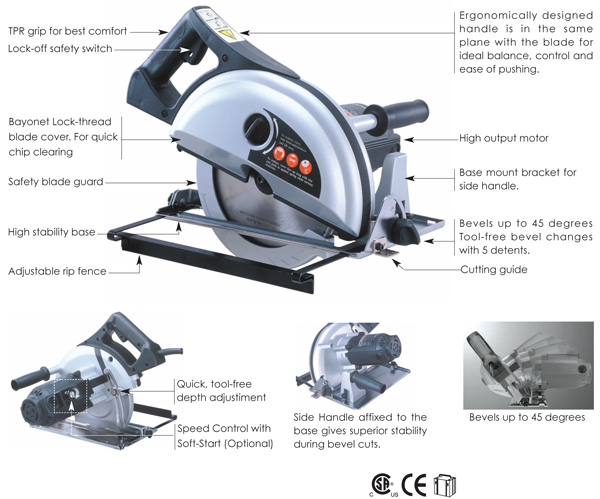

  • Purpose built for using TCT metal cutting blades to cut Steel, Stainless Steel, Aluminum, and other metals. Amazing performance cutting metals as easily as conventional circular saws cut wood. Cuts efficently and keeps cool.
  • Super-quick chip clearing with our unique bayonet-type blade cover latch.
  • Ergonomic handle shape and position with soft TPR grip the result of extensive lab testing for maximum comfort and fatigue free operation.
  • No need to buy a beveler our saws can bevel up to 45 degrees. We did not forget convenience, either. Our saws provide easy to read positive stops for all the most popular bevel angles, plus quick and easy adjustment.
  • High stability base with quick, tool-free depth adjustment including clearly marked scale.
  • High output motors for all the torque you need to perform even the most challenging cuts.
  • Safety features include a lock-off switch and spark/chip containing design.
  • Every feature comes together to provide exact, clean cuts with a variety of metals.
Model CS 200 CS 230
Motors Available 230V / 50Hz or 110V / 60Hz 230V / 50Hz or 110V / 60Hz
No Load Speed 3700 rpm 2600 rpm
Power 1700 Watts 1700 Watts
Bevels 0 to 45 Degrees 0 to 45 Degrees
Blade 200 mm ( 8 in.) 230 mm ( 9 in.)
Arbor 30mm (1-3/16 in.) or 25.4mm (1 in.) 30mm (1-3/16 in.) or 25.4mm (1 in.)
Cutting Capacities Straight cut: 67 mm (2-5/8 in.) Straight cut: 84mm (3-3/16 in.)
45 Degree Bevel: 42mm (1-5/8 in.) 45 Degree Bevel: 42mm (1-5/8 in.)
Weight kg(lbs.) 6.3 (13.6) 7.1 (15.6)
OPTIONAL ACCESSORIES:
Speed Control
Soft start
Blade
Hard Shell Case:
CS 200 & CS 230
Part Number
CS02000072
