II-electric&Pneumatic pipe bevelling machine PDF Print E-mail

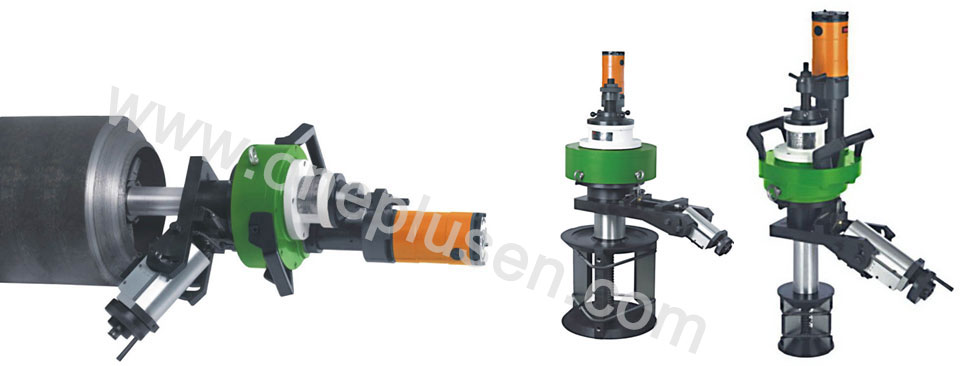

Ⅱ-electric pipe bevelling machine

This machine adopts the High-performance electrical motor to drive, Voltage 220V, frequency 50Hz, grant current 6A, activity 1-2.5KW,can be used for inflammable and dangerous homework place. Automatically feed mechanism,easy to operate,the cutting quantity can be adjusted and bevelling angel can be adjusted from 0degree to 45degree;can be used for bevelling the pipe wall thickness less than 75㎜,and used as flange facing tool.

Technical parameter

Model Capacity wall thickness Rotating rate Net Weight
ISY-250-Ⅱ Ф80-273mm ≤75mm 16 rpm 40kg
ISY-351-Ⅱ Ф150-351mm ≤75mm 14 rpm 48kg
ISY-630-Ⅱ Ф300-630mm ≤75mm 10rpm 58kg
ISY-850-Ⅱ Ф600-850mm ≤75mm 8rpm 80kg
ISY-1050-Ⅱ Ф820-1050mm ≤75mm 7rpm 108kg
ISY-1300-Ⅱ Ф1030-1300mm ≤75mm 5rpm 120kg
ISY-1500-Ⅱ Ф1270-1500mm ≤75mm 4rpm 150kg

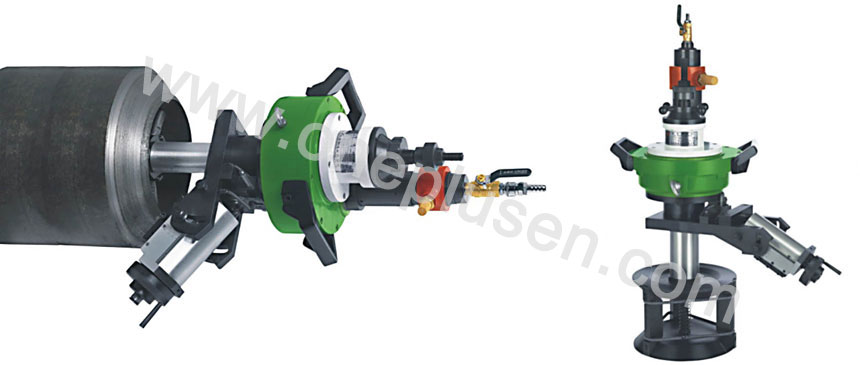

Ⅱ-pneumatic pipe bevelling machine

This machine adopts pneumatica motor to drive,air working pressure 1-2.5MPa,air consuming flux 1000-2000L/min.There isn’t spark in the course of working.can be used for inflammable and dangerous homework place. Automatically feed mechanism,easy to operate,the cutting quantity can be adjusted and bevelling angel can be adjusted from 0degree to 45degree;can be used for bevelling the pipe wall thickness less than 75㎜,and used as flange facing tool.

Technical parameter

Model Capacity wall thickness Rotating rate Net Weight
TCM-250-Ⅱ Ф80-273mm ≤75mm 16 rpm 38kg
TCM-351-Ⅱ Ф150-351mm ≤75mm 14 rpm 45kg
TCM-630-Ⅱ Ф300-630mm ≤75mm 10rpm 55kg
TCM-850-Ⅱ Ф600-850mm ≤75mm 8rpm 76kg
TCM-1050-Ⅱ Ф820-1050mm ≤75mm 7rpm 105kg
TCM-1300-Ⅱ Ф1030-1300mm ≤75mm 5rpm 116kg
TCM-1500-Ⅱ Ф1270-1500mm ≤75mm 4rpm 145kg
