Y-electric&Pneumatic pipe bevelling machine PDF Print E-mail

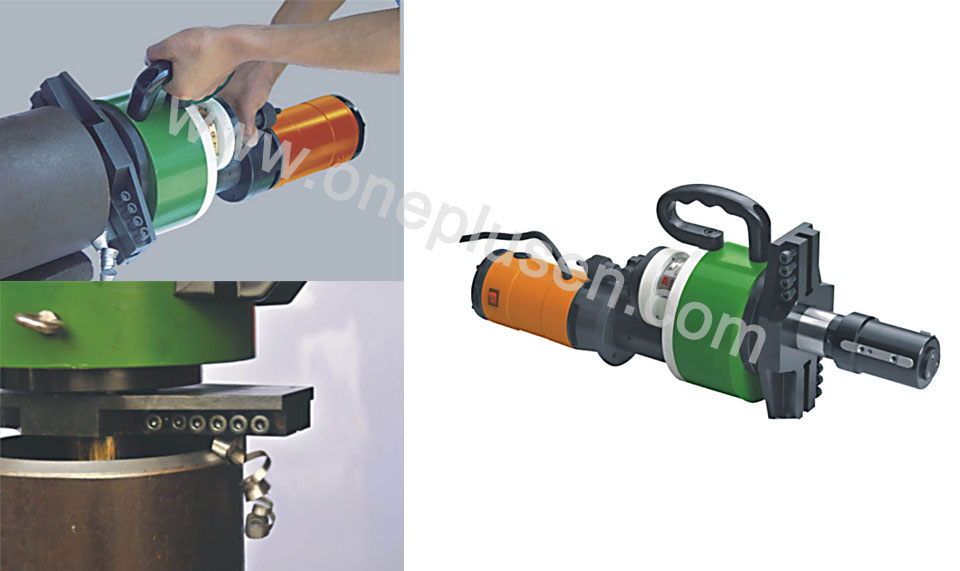

Y-electric pipe bevelling machine

This machine adopts the High-performance electrical motor to drive, Voltage 220V, frequency 50Hz, grant current 6A, activity 0.5-2.5KW.

Technical parameter

Model Capacity wall thickness Rotating rate Net Weight
ISY-150 Ф65-159mm ≤20mm 34 rpm 12.5kg
ISY-250 Ф80-273mm ≤20mm 16 rpm 38kg
ISY-351 Ф150-351mm ≤20mm 14 rpm 42kg
ISY-630 Ф300-630mm ≤15mm 10rpm 55kg
ISY-850 Ф600-850mm ≤15mm 8rpm 65kg
ISY-1050 Ф820-1050mm ≤15mm 7rpm 80kg
ISY-1300 Ф1030-1300mm ≤15mm 5rpm 90kg
ISY-1500 Ф1270-1500mm ≤15mm 4rpm 100kg

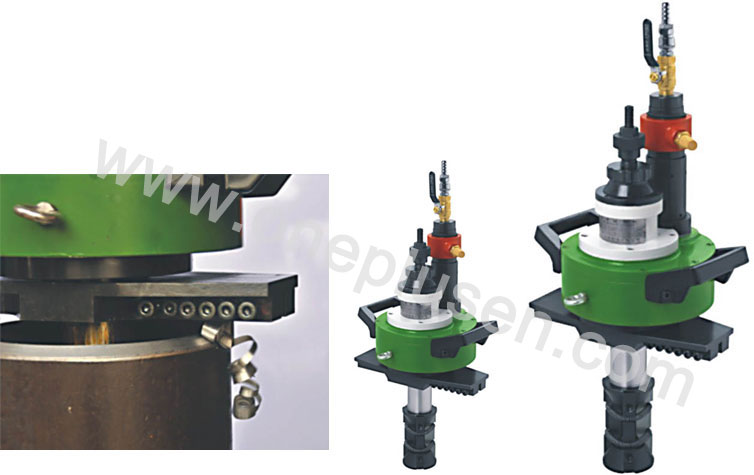

Y-pneumatic pipe bevelling machine

This machine adopts pneumatica motor to drive,air working pressure 0.6-1.5MPa,air consuming flux 650-1500L/min.There isn’t spark in the course of working.can be used for inflammable and dangerous homework place.

Technical parameter

Model Capacity wall thickness Rotating rate Net Weight
TCM-150 Ф65-159mm ≤20mm 34 rpm 11kg
TCM-250 Ф80-273mm ≤20mm 16 rpm 36kg
TCM-351 Ф150-351mm ≤20mm 14 rpm 41kg
TCM-630 Ф300-630mm ≤15mm 10rpm 54kg
TCM-850 Ф600-850mm ≤15mm 8rpm 63kg
TCM-1050 Ф820-1050mm ≤15mm 7rpm 78kg
TCM-1300 Ф1030-1300mm ≤15mm 5rpm 88kg
TCM-1500 Ф1270-1500mm ≤15mm 4rpm 98kg
