T-electric&Pneumatic pipe bevelling machine PDF Print E-mail

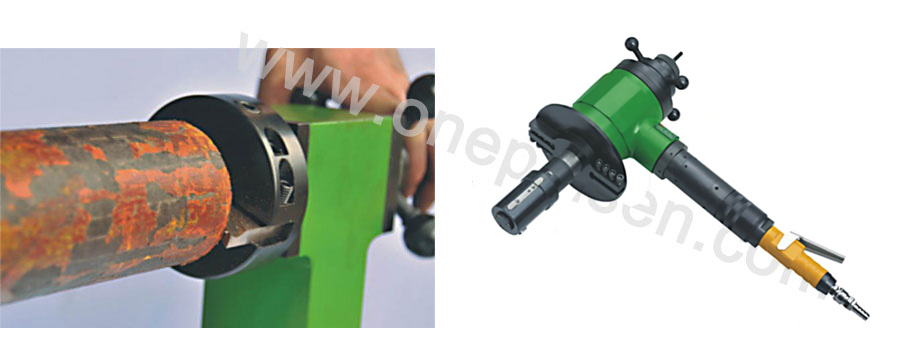

T-electric pipe bevelling machine

This machine adopts the High-performance electrical motor to drive, Voltage 220V, frequency 50Hz, grant current 6A, activity 0.5-2.5KW.

Technical parameter

Model Capacity wall thickness Rotating rate Net Weight
ISY-28T Ф13-30mm ≤15mm 58rpm 5kg
ISY-80T Ф28-76mm ≤15mm 55rpm 7kg
SDC-150T Ф65-159mm ≤20mm 34rpm 16kg
SDC-350T Ф150-330mm ≤20mm 16rpm 38kg

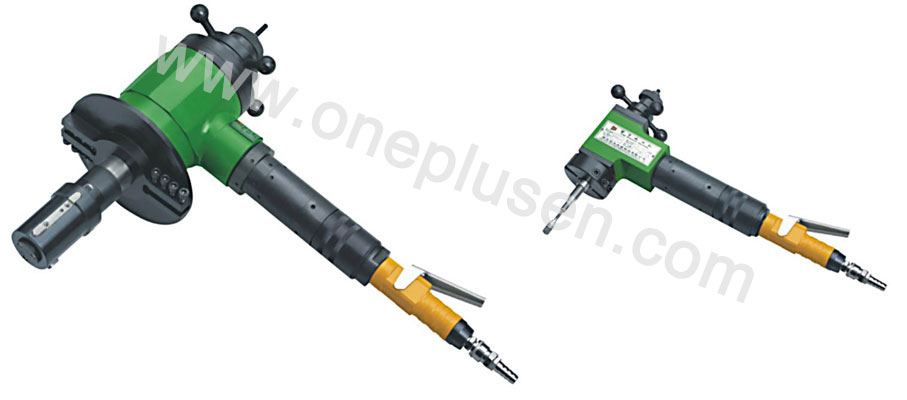

T-Pneumatic pipe bevelling machine

This machine adopts pneumatica motor to drive,air working pressure 0.6-1.5MPa,air consuming flux 650-1500L/min.There isn’t spark in the course of working.can be used for inflammable and dangerous homework place.

Technical parameter

Model Capacity wall thickness Rotating rate Net Weight
TCM-28T Ф13-30mm ≤15mm 58rpm 4.5KG
TCM-80T Ф28-80mm ≤15mm 55rpm 6KG
TCM-150T Ф65-159mm ≤20mm 34rpm 14.5KG
TCM-350T Ф150-350mm ≤20mm 16rpm 36KG
