Pneumatic pipe cutting and beveling series of outer PDF Print E-mail

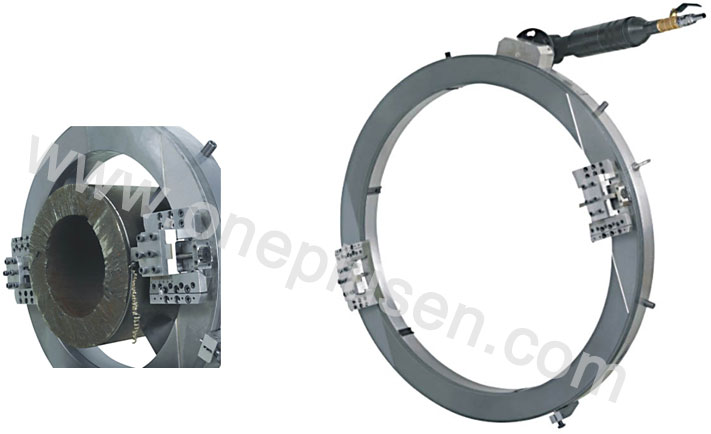

Pneumatic pipe cutting and bevelling machine

This machine adopts pneumatica motor to drive,air working pressure 0.6-2.5MPa,air consuming flux 1500-2000L/min.There isn’t spark in the course of working.can be used for inflammable and dangerous homework place.

Technical parameter

Model Capacity wall thickness Rotating rate Net Weight
ISF-80 Ф10-80mm ≤30mm 20rpm 6.5kg
ISF-150 Ф65-150mm ≤50mm 16rpm 13kg
ISF-300 Ф150-300mm ≤50mm 13rpm 35KG
ISF-450 Ф300-450mm ≤50mm 10rpm 48kg
ISF-600 Ф450-600mm ≤50mm 8rpm 65kg
ISF-750 Ф600-750mm ≤50mm 7rpm 80kg
ISF-900 Ф750-900mm ≤50mm 6rpm 100kg
ISF-1050 Ф900-1050mm ≤50mm 5rpm 120kg
ISF-1160 Ф980-1160mm ≤50mm 5rpm 160kg
ISF-1300 Ф1120-1300mm ≤50mm 5rpm 180kg
ISF-1500 Ф1300-1500mm ≤50mm 5rpm 230kg
