NC pipe cutting and beveling series of outer PDF Print E-mail

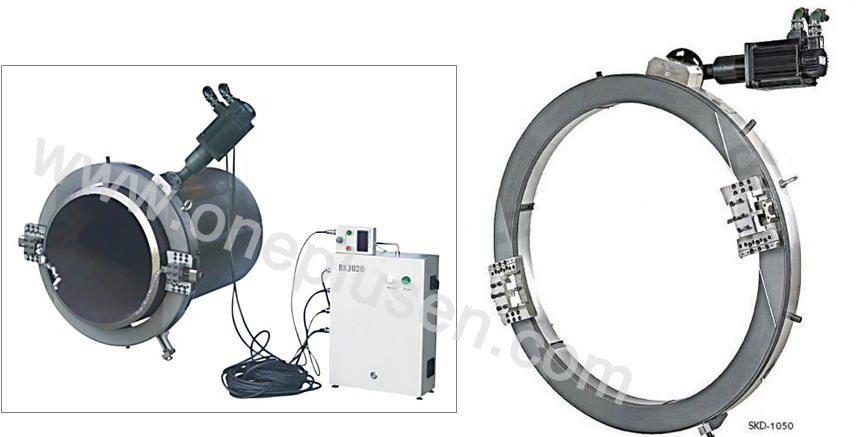

NC pipe cutting and bevelling machine

This machine adopts the servo motor of high-power to drive, PLC control system,control the speed of feed,can realize the stepless speed regulation,Its range is 0-20rpm;can be used for cutting and bevelling the thick wall pipe.

Technical parameter

Model Capacity wall thickness Rotating rate Net Weight
SKD-80 Ф10-80mm ≤30mm 20rpm 10kg
SKD-150 Ф65-150mm ≤50mm 16rpm 18kg
SKD-300 Ф150-300mm ≤50mm 13rpm 47kg
SKD-450 Ф300-450mm ≤50mm 10rpm 50kg
SKD-600 Ф450-600mm ≤50mm 8rpm 77kg
SKD-750 Ф600-750mm ≤50mm 7rpm 92kg
SKD-900 Ф750-900mm ≤50mm 6rpm 115kg
SKD-1050 Ф900-1050mm ≤50mm 5rpm 135kg
SKD-1160 Ф980-1160mm ≤50mm 5rpm 175kg
SKD-1300 Ф1120-1300mm ≤50mm 5rpm 195kg
SKD-1500 Ф1300-1500mm ≤50mm 5rpm 250kg
